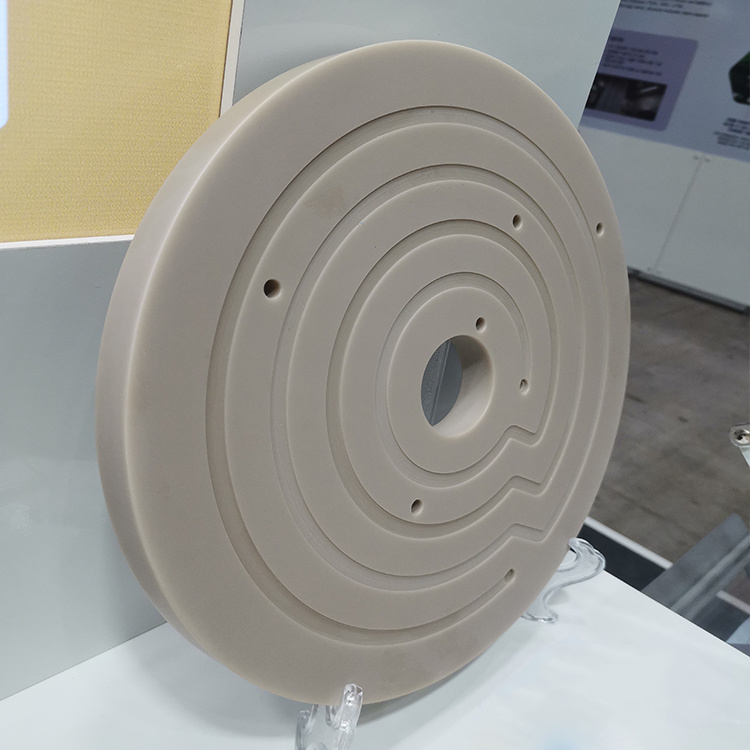

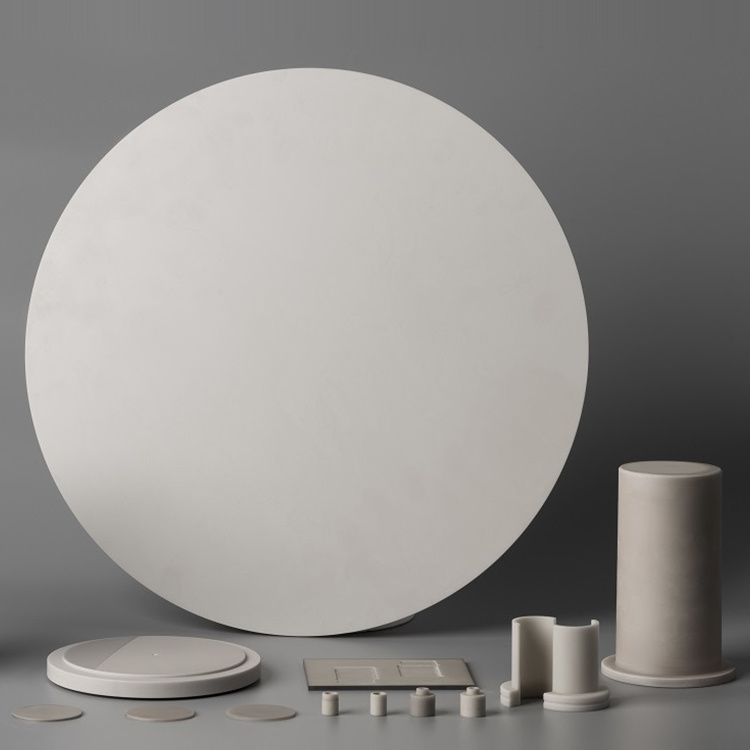

XTL sintyron Wholesale Cheap ALN Aluminium Nitride Ceramic Part Structural Parts for Sale


Aluminum nitride ceramic parts have high thermal conductivity and electrical insulation, so they can be used in a variety of electronic devices. The thermal conductivity of aluminum nitride is 170W/(mk), which is 5-8 times that of alumina ceramics.

Contact us

Products Center


Wholesale Cheap ALN Aluminium Nitride Ceramic Part Structural Parts for Sale

,_01

What is Aluminum Nitride?

Known for its high thermal conductivity and electrical insulating properties, aluminum nitride is an excellent material for making semiconductors. It is also used as a heat sink in light-emitter lighting technology.

Aluminum nitride is an inorganic compound of aluminium and nitrogen. It belongs to the wurtzite crystal structure and has a band gap of 6 eV at room temperature. This makes it suitable for applications in deep ultraviolet optoelectronics. It is also used as a circuit carrier in semiconductors.

Product descritption:

Performance For Industrial Ceramic

Ceramic Substrates Properties

Materials

AlN

Color

Gray

Density (g/cm 3 )

3.3

Thermal conductivity (W/m. K)

160 -190

Thermal Expansion (x10-6 / o C)

4.6

Dielectric strength

1.40E+07

Dielectric Constant (at 1MHZ)

8.7

Loss Tangent (x10-4 at 1MHZ)

5

Volume Resistivity (ohm-m)

>1014

Flexural Strength (N/mm 2 )

450

Aluminum Nitride Substrate feature:

1.The thermal conductivity of aluminum nitride ceramic substrate is very high, 5 times that of alumina ceramic substrate, the crystal is AIN, strong hardness, good insulation, high temperature resistance and corrosion resistance.

2.The thermal conductivity (thermal conductivity) of aluminum nitride ceramic substrate is greater than or equal to 170W/m.k., and the thermal conductivity of aluminum nitride ceramic substrate is that of alumina ceramic substrate and silicon nitride ceramic substrate.

3.Aluminum nitride ceramic substrate without FR4 plate can be very long and large, the size is relatively small, the maximum size of the general aluminum nitride ceramic substrate material is 110mm*140mm, aluminum nitride ceramic substrate is a ceramic base, easy to break, do too big too long does not meet the characteristics of the substrate.

4.Aluminum nitride ceramic substrate dielectric loss is very low, in 0.0002, coupled with the coefficient of thermal expansion is also very low (4.6~5.2), dielectric loss is small, energy consumption is small, high temperature corrosion resistance, durable.

5.The dielectric constant of aluminum nitride ceramic substrate is generally 9.0, which is 0... 8, low dielectric constant, means better quality.

6.Flexural strength refers to the ability of a material to resist bending without breaking, which is mainly used to investigate the strength of brittle materials such as ceramics. The bending strength of the aluminum nitride ceramic substrate is 450Mpa, and the bending strength of the alumina ceramic substrate is 400Mpa, which means that the aluminum nitride ceramic substrate can withstand more pressure and tension.

7.The ability of a material to resist other hard objects pressing into it and causing dented deformation. Commonly used hardness units are Brinell hardness (HB or BHN), Vickers hardness (Hv or VHN), Rockwell hardness (HRA, HRC or RHN) and Knower hardness (HK or KHN). The surface hardness of a material is the result of its strength, proportional limit, toughness, ductility, abrasion resistance, cutting resistance and other properties. The fracture toughness of aluminum nitride ceramic substrate is 3.0Mpa m1/2.

8.Aluminum nitride ceramic substrate is brittle, although the hardness is stronger than the alumina ceramic substrate, the alumina ceramic substrate is white, and the aluminum nitride ceramic substrate is grayish white. The surface roughness of aluminum nitride ceramic substrate is generally required to be less than 10 N.

Advantages of aluminum nitride ceramic parts

Aluminum nitride ceramic parts have high thermal conductivity and electrical insulation, so they can be used in a variety of electronic devices.

The thermal conductivity of aluminum nitride is 170W/(mk), which is 5-8 times that of alumina ceramics. Therefore, AlN ceramics have good thermal shock resistance and can be used in a high temperature environment of 2200 ° C.

Aluminum nitride ceramics is one of advanced precision ceramic materials, which is widely used in electronics industry because of its excellent thermal conductivity and electrical insulation properties. For example:

1.Heat sinks and fins;

2.Laser electrical insulator;

3.Chuck of semiconductor processing equipment, clamping ring;

4.Silicon wafer processing;

5.Substrates and insulators for microelectronic and optoelectronic devices;

6.Electronic packaging substrate;

7.Chip carrier for sensors and detectors.
