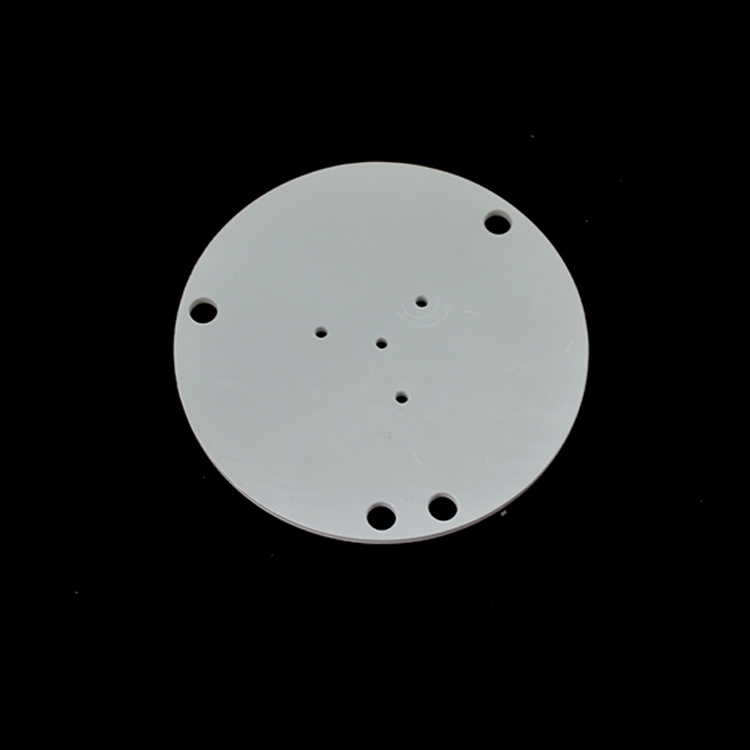

XTL sintyron Aluminum Nitride/Boron Nitride Composite BN-AlN Ceramic Parts Heat sinks plate for Ion Source

BN-AlN Ceramic is made by sintering Boron Nitride (BN) and Aluminum Nitride (AIN) powder. It has excellent electrical insulator, thermal conductivity, high strength, resistance to thermal shock, and strong resistance to halogen gas plasma, which is offers a wide range of applications, including components for semiconductor production equipment and components that require effective heat dissipation.

Email: sintyron@xtlceramic.com

Inquiry Now

Products Center

XTL sintyron Aluminum Nitride/Boron Nitride Composite BN-AlN
Ceramic Parts Heat sinks plate for Ion Source

Product Instruction
The ion source is a device that creates atomic and molecular ions, which is in the vacuum chamber. Aluminum Nitride/Boron Nitride Composite has excellent electrical insulator, thermal conductivity, sealing ability to vacuum and hasn’t given off much gas. So it is plays an heat sinks and thermal transfer plate role in ion sources.

Properties	Units	BAN
Main Composition	/	BN+ALN
Color	/	Greyish- Green
Density	g/cm3	2.8~2.9
Three-Point Bending Strength	MPa	90
Compressive Strength	MPa	220
Thermal Conductivity	W/m·k	85
Thermal Expansion Coefficient (20-1000℃)	10-6/K	2.8
Max Using Temperature	In Atmosphere ℃	900
	In Inactive Gas ℃	1750
	In High Vacuum ℃	1750

Product details

Material Advantages:

High mechanical strength.
High thermal conductivity.
Low thermal expansion.
Low dielectric loss.
Excellent electrical insulation.
High corrosion resistance–non-wetted by molten metals.
Excellent Machinabilit–BN-AlN can be machined to high-precision complex shapes.
It has excellent sealing ability to vacuum and hasn’t given off much gas.
High-frequency wave properties, allow visible infra-red light to pass through easily.

Applications

Heat sinks
Vacuum components
Components where low dielectric constant and dissipation factor are required
Parts and components where a low coefficient of thermal expansion is required
Electronic components where electrical insulation and heat dissipation are required
Electric propulsion discharge channels for Hall Effect Thrusters
