XTL Sintyron Alumina Ceramic Ring Connector for Sealed Joints

A high-performance sealing solution designed for extreme conditions, our precision-engineered alumina ceramic ring connectors deliver exceptional thermal stability (up to 1600°C), corrosion resistance, and leak-proof performance for industrial piping, chemical processing, and high-temperature systems.

Email: sintyron@xtlceramic.com

Inquiry Now

Products Center

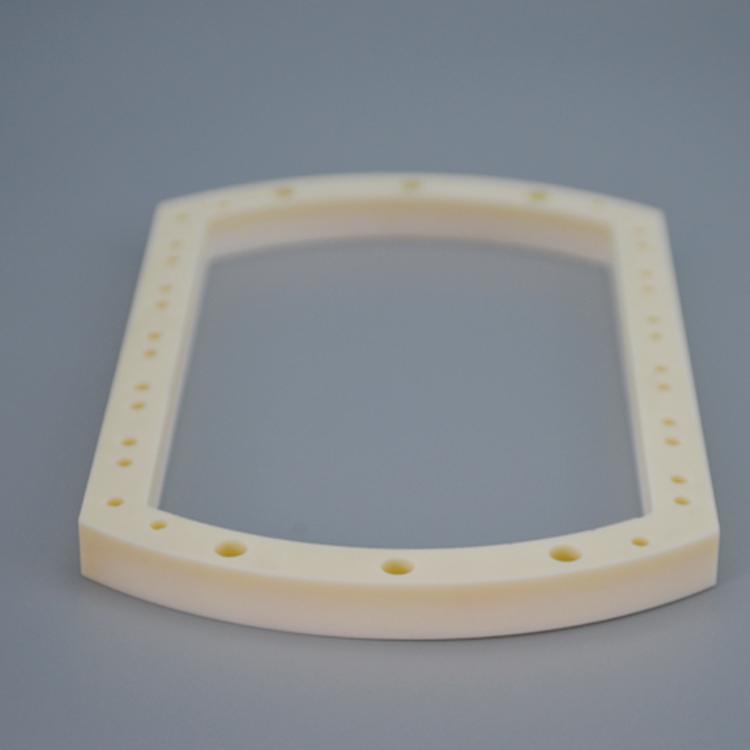

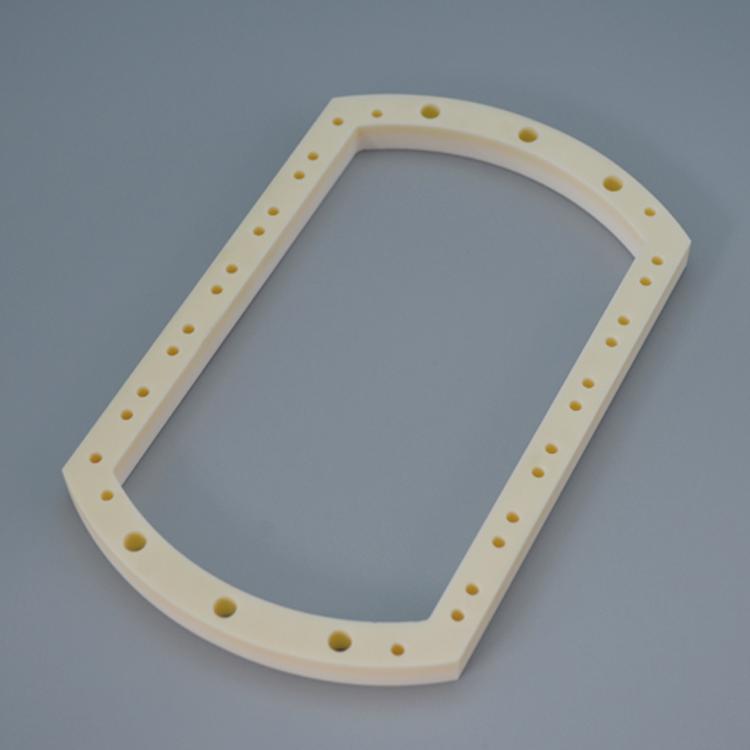

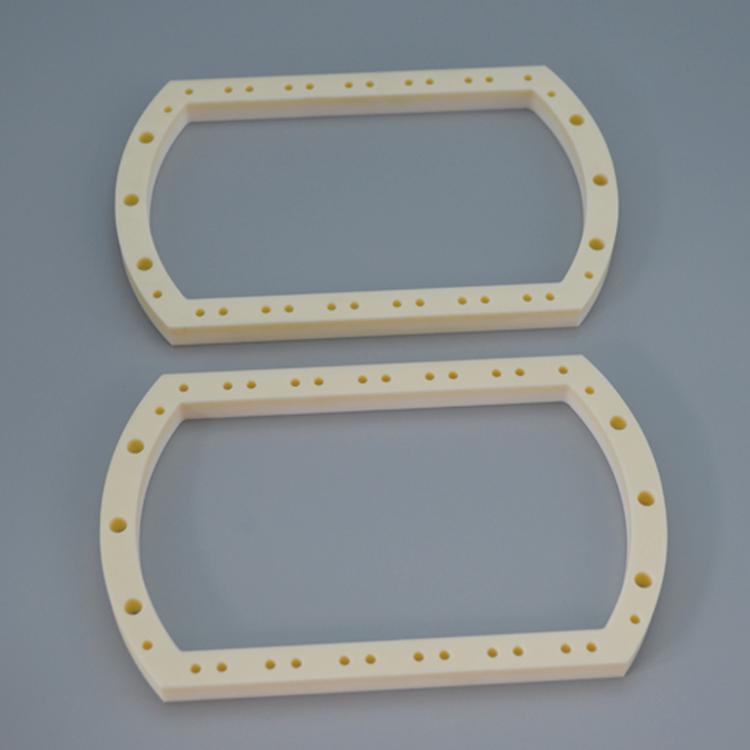

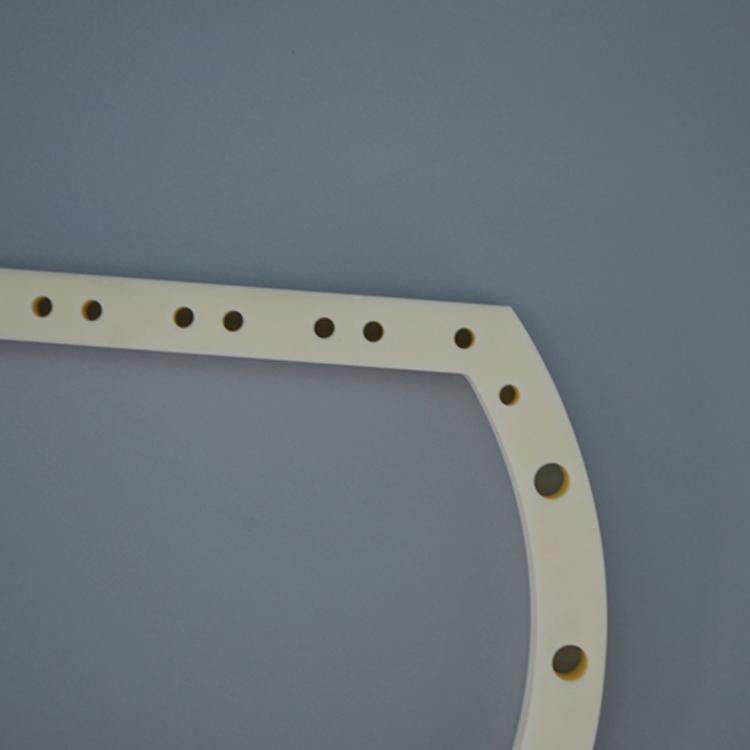

Alumina Ceramic Ring Connector for Sealed Joints

Product description:

High-precision alumina ceramic ring connectors provide excellent sealing performance,

corrosion resistance, and thermal stability for demanding industrial applications. Ideal for

pipes, valves, pumps,and high-temperature systems, these connectors ensure leak-proof,

durable, and long-lasting sealed joints.

Material Introduction:

Technical Parameters

Material: 99% Al₂O₃ (Alumina Ceramic)

Density: ≥3.8 g/cm³

Hardness: ≥85 HRA (Rockwell A)

Max Working Temp: 1600°C (2912°F)

Dielectric Strength: ≥15 kV/mm

Flexural Strength: ≥300 MPa

Surface Finish: Customizable (polished, glazed, or as-machined)

Size Range: Custom diameters (5mm–200mm) and thicknesses

Key Features & Advantages

✔ High-Temperature Resistance – Withstands up to 1600°C (2912°F), ideal for extreme environments.
✔ Superior Hardness & Wear Resistance – Mohs hardness 9, ensuring long service life.
✔ Excellent Corrosion Resistance – Resists acids, alkalis, and harsh chemicals.
✔ Electrical Insulation – High dielectric strength for electronic and high-voltage applications.
✔ Precision Machined – Tight tolerances for secure, leak-proof sealing.
✔ Low Thermal Expansion – Maintains structural integrity under thermal cycling.

Composition	AL95	AL99
Color	White	Ivory
Density (g/cm³ )	3.72	3.85
Thermal conductivity (W/m. K)	22.3	32 Kpsi
Thermal Expansion (x10^-6 /℃)	8	8.2
Dielectric Constant (at 1MHZ)	9.5	9.8
Loss Tangent (x10^-4 at 1MHZ)	3	2
Volume Resistivity (ohm-m)	>10¹⁴	>10¹⁴
Flexural Strength (N/mm² )	350	500

Why Choose Our Alumina Ceramic Ring Connectors?

✅ Customizable sizes & shapes for OEM requirements.
✅ Strict QC standards (ISO 9001 certified).
✅ Fast lead time & global shipping.
✅ Competitive pricing & bulk discounts.

📩 Contact us today for quotes & custom solutions!
