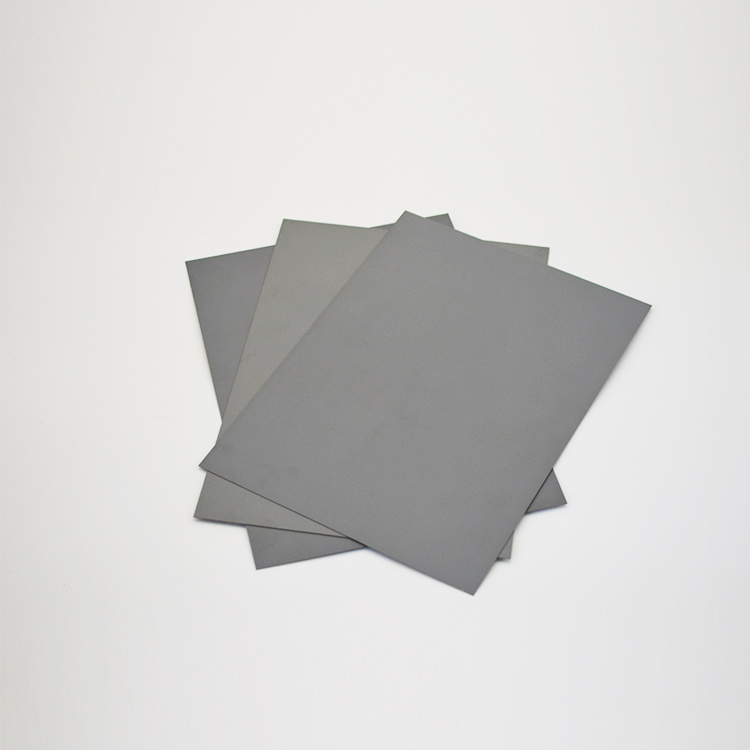

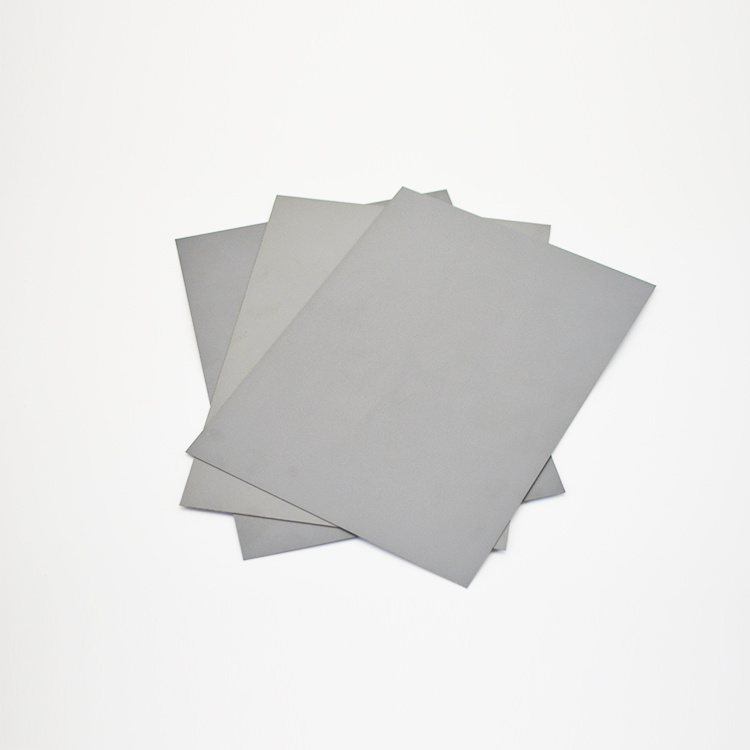

SINTYRON customized black ceramic si3n4 silicon nitride square plate


We supply standard and custom-sized Si₃N₄ square plates tailored to your needs. Contact us for technical support, pricing, and lead times. 📞 Get a Quote Today! – Let our engineers help you select the best ceramic solution.

Email: sintyron@xtlceramic.com

Inquiry Now

Products Center


Silicon Nitride Plate Description

Silicon Nitride (Si₃N₄) is an advanced high-performance ceramic known for its exceptional mechanical strength,
 thermal shock resistance, and chemical stability. Our precision-engineered Si₃N₄ square plates are ideal for
 demanding industrial, semiconductor, and high-temperature applications where reliability is critical.
Data Sheet & Typical properties of silicon nitride material:

Key Specifications & Parameters

PropertyValue / Description
MaterialHigh-purity Silicon Nitride (Si₃N₄)
GradeSintered Reaction-Bonded (SRBSN) / Hot-Pressed (HPSN)
Purity≥99% (low oxide content)
Density3.2 - 3.3 g/cm³
Flexural Strength600 - 1000 MPa (high fracture toughness)
Hardness (Vickers)1400 - 1600 HV
Thermal Conductivity20 - 30 W/m·K
Max Operating Temp.1200°C (continuous), up to 1400°C (short-term)
Thermal ExpansionLow (~3.2 × 10⁻⁶ /K)
Dielectric StrengthExcellent electrical insulation
Chemical ResistanceResistant to acids, alkalis, and molten metals (e.g., Al, Cu)



Performance Advantages

 Extreme Durability – Superior wear and impact resistance compared to alumina or zirconia.
 Thermal Shock Resistance – Withstands rapid temperature changes without cracking.
 Corrosion & Erosion Resistance – Ideal for harsh chemical and abrasive environments.
 Electrical Insulation – Excellent for high-voltage and high-frequency applications.
 Lightweight & High-Stiffness – Perfect for precision engineering and structural components.



Typical Applications

Semiconductor & Electronics

Wafer handling, heater plates, insulators, and electrostatic chucks (ESCs)

Industrial & Mechanical

Bearings, cutting tools, wear plates, and pump components

Energy & Aerospace

Turbine blades, heat exchangers, and radomes

Research & Laboratory

High-temperature furnace fixtures, crucibles, and custom ceramic parts

Packing & Delivery

As a ceramic material, silicon nitride is quite fragile in a lot of cases. Our silicon nitride plate & sheet
are carefully handled to minimize damage during storage and transportation. Suitable outer boxes
and inner cushioning materials are used for Si3N4products, vacuum packing is also engaged for some of the parts.
Company Profile
FAQ

Why us?
* Professional manufacturer since 1997.
* Strict quality control on production process and tolerance.
* Free samples available
* Customized production based on your drawing or specification
* On-time delivery and reliable support and service
* Inventory available for quick shipment
* We keep confidentiality of all the drawings and business information between us.


Are you a trading company or a manufacturer?
* We are a manufaturer.

Can you provide the free samples?
* Yes,we can offer free sample if we have it in stock,but the courier fee is to be collected.

Do you accept customized production based our specification?
* Yes,we offer OEM and ODM service. Just send us your drawing if you have it. If you don’t have a drawing, just tell us your idea,
we will work out the drawing for you.

What's the delivery time?
* 7 working days for standard products 30 days for customized products.

What is the MOQ?
* No limit to the quantity. We can offer the best proposal and solutions according to your condition.

What is the payment terms you accept?
* T/T,LC,Western Union,moneygram are acceptable.

How to deal with the faulty?
* Firstly, Our product are produced in strict quality control system and the defective rate will be less than 2%.
If there are problems with the product, we will provide free replacement.
