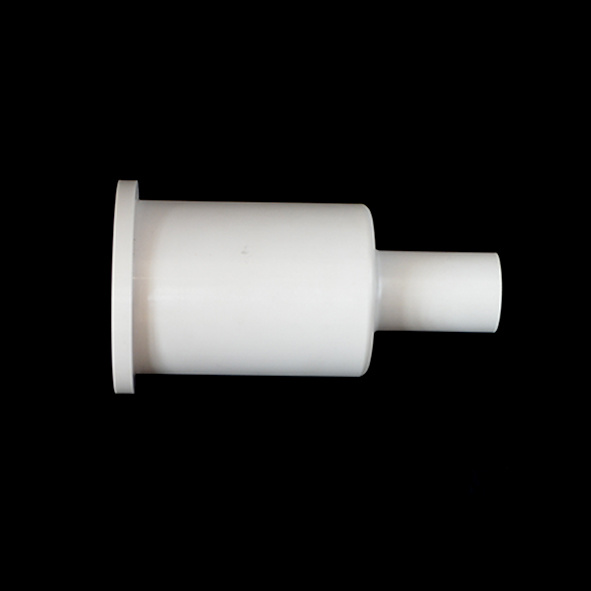

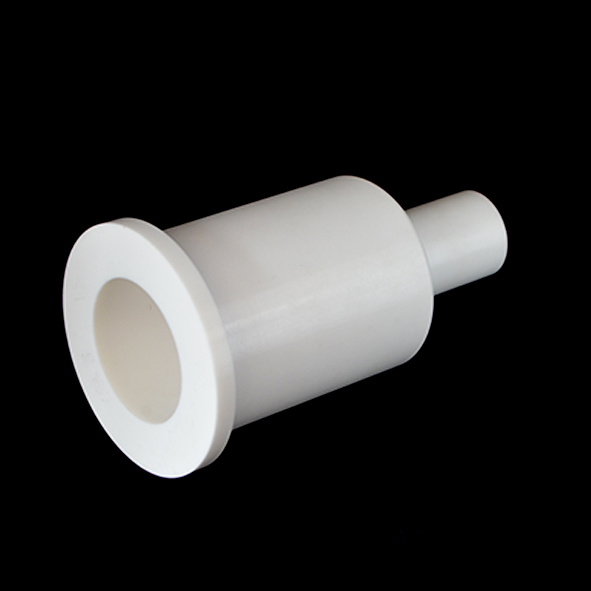

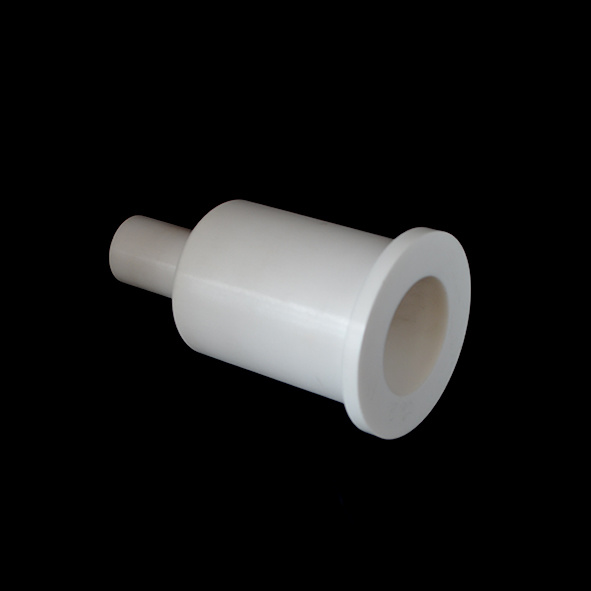

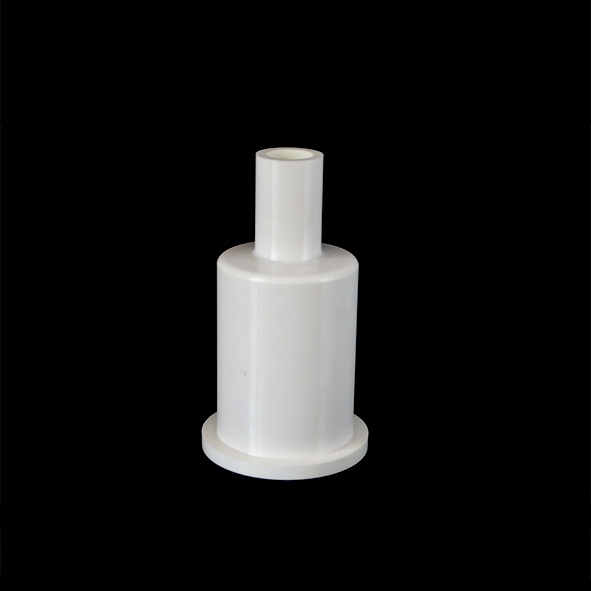

SINTYRON Customized Yttrium Stabilized Zirconia Ceramic Sleeve Bushing Zro2 Tube Pipe for Industrial

zirconia ceramic sleeve are a versatile and high-performance material that offers a combination of mechanical strength, wear resistance, chemical inertness, and electrical insulation. With their exceptional properties, zirconia ceramic plates are ideal for a wide range of industrial and scientific applications where performance and reliability are critical. Whether used in cutting tools, wear-resistant components, insulating materials, or protective armor, zirconia ceramic plates are sure to deliver superior performance and longevity.

Email: sintyron@xtlceramic.com

Inquiry Now

Products Center

SINTYRON Customized Yttrium Stabilized Zirconia Ceramic Sleeve Bushing Zro2 Tube Pipe for Industrial

Zirconia ceramic tubes (ZrO₂ ceramic tubes) are high-performance ceramic products, mainly composed of zirconia. They possess excellent characteristics such as high temperature resistance, corrosion resistance, high strength and wear resistance.

Key Characteristics：
1.High Heat Resistance:
The melting point of zirconia is as high as approximately 2700℃, and it can operate stably in a high-temperature environment of over 1600℃ for a long time (this depends on the stabilization treatment method).
2.Excellent mechanical properties:
The bending strength and fracture toughness are much higher than those of ordinary ceramics (such as alumina), and some stable zirconia (such as YSZ) even have the reputation of being "ceramic steel".
3.Low thermal conductivity:
Suitable for use as a high-temperature insulation material.
4.Chemical inertness:
Resistant to corrosion by acids and alkalis, especially performing exceptionally well in strong acids (such as hydrochloric acid and sulfuric acid) and strong oxidizing environments.
5.Wear resistance:
6.High hardness (Mohs hardness approximately 8.5), suitable for high wear environments.
7.Electrical insulation:
Application fields
High-temperature industry:
Thermocouple protective tubes, molten metal crucibles, furnace tubes, etc.
Chemical industry:
Corrosive fluid transportation pipes, reactor linings.
Medical field:
Dental implants, surgical instrument components (with good biocompatibility).
Energy sector:
Solid oxide fuel cell (SOFC) electrolyte tubes (such as YSZ).
Semiconductor industry:
High-purity zirconia tubes are used in wafer processing equipment.

Y-FSZ Ceramic Properties
Chemical content	ZrO2	86 wt%
Chemical content	Y2O3	14 wt%
Physical Properties	Melting point	≥2500℃
	Max. operating temperature	2200℃
	Color	White
	Density	5.8g/cm³
Mechanical properties	Flexural strength	200MPa
	Young’s module	200GPa
	Hardness(HRA)	86
Thermal properties	Thermal expansion coefficient(20℃)	8-10X10^-6
Thermal properties	Thermal conductivity	1-2W/mk
Electrical properties	Dielectric constant(1MHz25℃)	12
Electrical properties	Electrical resistivity(25℃)	10⁹
