XTL sintyron Customized Vgf Mbe Ole Lec Pbn Pyrolytic Boron Nitride Crucible

Pyrolytic Boron Nitride (PBN) crucibles are advanced ceramic materials widely used in high-temperature and high-purity applications due to their exceptional properties.

PBN crucibles exhibit a unique combination of physical, chemical, thermal, and electrical properties, making them ideal for demanding applications:

Physical Properties

• Density: 1.95–2.22 g/cm³ 29.

• Helium Permeability: <1×10⁻¹⁰ cm/s, indicating excellent gas tightness.

• Moisture Resistance: No absorption or hydrolysis when immersed in water for 10 days.

Chemical Properties

• Purity: Up to 99.99% BN, with minimal metal impurities (<10 ppm) .

• Chemical Inertness: Resistant to acids, alkalis, salts, and organic reagents at room temperature. Slight corrosion occurs in molten salts and alkalis, but it resists most acids at high temperatures .

• Non-Reactivity: Does not react with most molten metals, semiconductors, or their compounds.

Thermal Properties

• Thermal Conductivity: Anisotropic, with values of 60 W/m·K (parallel to the "a" axis) and 2.6 W/m·K (parallel to the "c" axis) at 200°C

• Thermal Shock Resistance: Excellent, with no cracking observed even at 2000°C

• Maximum Temperature: Can withstand up to 2500°C in a vacuum

Electrical Properties

• Dielectric Strength: 56 kV/mm at room temperature

• Volume Resistivity: 3.11×10¹⁸ Ω·cm, indicating high electrical insulation

Applications of PBN Crucibles

PBN crucibles are used in various high-tech industries due to their exceptional properties:

• Semiconductor Industry: For crystal growth (e.g., GaAs, GaP) and molecular beam epitaxy (MBE) .

• Optoelectronics: In the production of LEDs and laser diodes.

• High-Temperature Furnaces: As insulation and structural components .

• Chemical Vapor Deposition (CVD): As substrates or coatings .

• Aerospace: For components requiring high thermal stability and chemical resistance .

Advantages of PBN Crucibles

• High Purity: Ensures minimal contamination in sensitive processes.

• Uniform Thickness: Easily adjustable thickness in both axial and circumferential directions.

• Durability: Long service life even under extreme conditions.

• Non-Toxicity: Safe for use in high-purity environments.

Types

• OLED Crucible: It has the advantages of high temperature resistance, high purity, good heating uniformity, extremely low outgassing rate at high temperatures and good thermal shock resistance. It is used in the OLED evaporation technology.

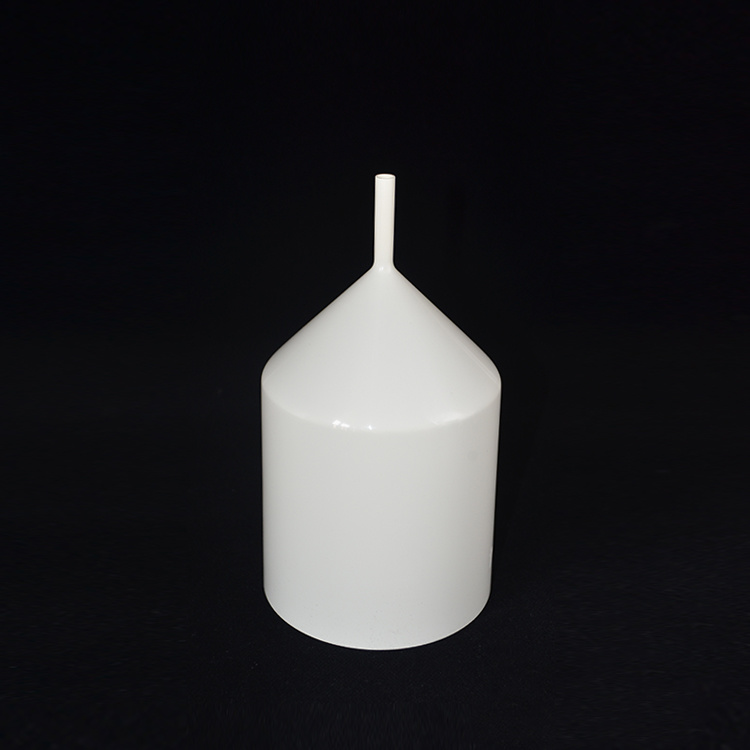

• VGF Crucible: The vertical gradient freeze crucible is commonly used in the growth of semiconductor single crystals such as gallium arsenide and indium phosphide. It can provide an accurate temperature gradient and a stable growth environment.
• MBE Crucible: The molecular beam epitaxy crucible is used in the molecular beam epitaxy technology. It can precisely control the growth of materials and is used to prepare high-quality semiconductor thin films.
• LEC Crucible: The liquid-encapsulated Czochralski crucible is used to grow large-diameter semiconductor single crystals such as silicon and germanium.

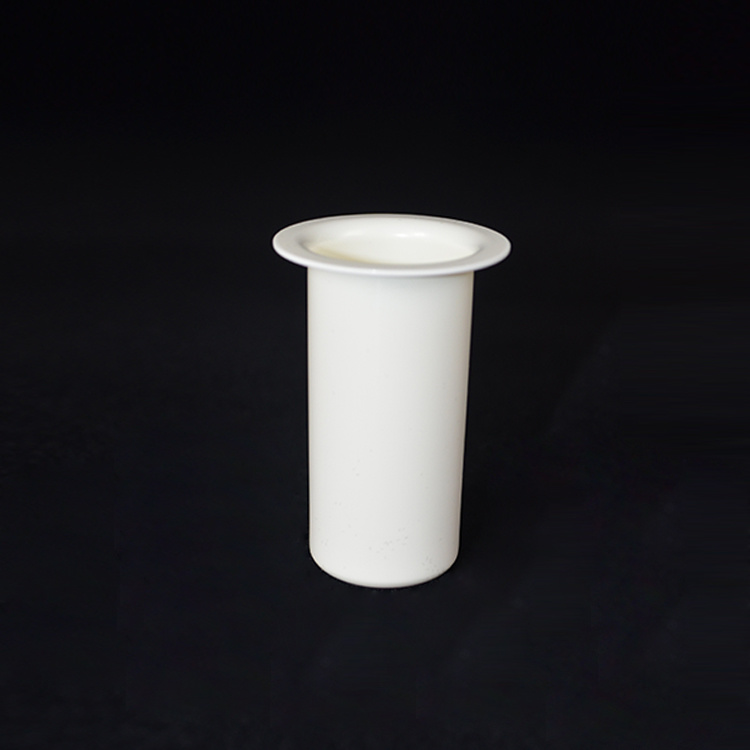

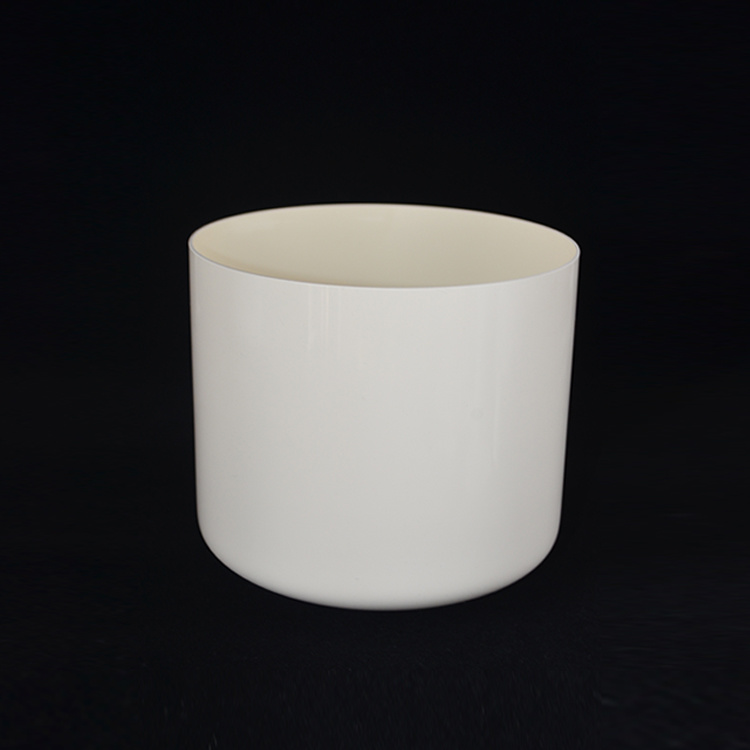

Product details

Conclusion

• PBN Crucibles are ideal for high-purity, high-temperature applications in industries like semiconductors, optoelectronics, and aerospace, where chemical inertness and thermal stability are critical.

• Alumina Crucibles are more suitable for general-purpose applications in metallurgy, ceramics, and laboratory settings, where cost and mechanical strength are more important than extreme purity and thermal performance.

Choosing between the two depends on the specific requirements of your application, including temperature, chemical environment, purity, and budget.

The higher cost of PBN crucibles is justified by their superior material properties, complex manufacturing process, and suitability for high-performance applications. In contrast, alumina crucibles are more affordable due to their simpler production process and broader, less demanding applications. For industries requiring extreme purity, thermal stability, and chemical resistance, PBN crucibles are often the only viable option despite their higher price
