XTL sintyron Oval Double Bore Alumina Ceramic Tube

Product description:

An Oval Double Bore Alumina Ceramic Tube is a specialized ceramic component made

from alumina (aluminum oxide, Al₂O₃). It features an oval-shaped cross-section with two

parallel bores (holes) running through its length. These tubes are widely used in

high-temperature, corrosive, or electrically insulating applications due to alumina's excellent properties.

We can do OEM and OBM according to your drawing and requires​:​​​​​​



Key Features:

Material: Made from high-purity alumina (typically 95% to 99.8% Al₂O₃), offering:

High thermal stability

Excellent electrical insulation

Superior mechanical strength

Resistance to corrosion and wear

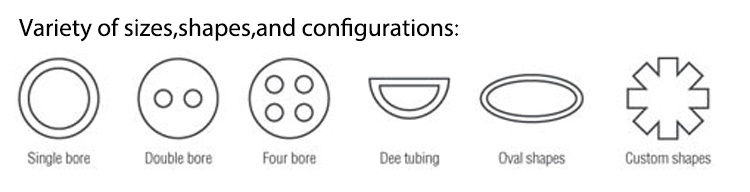

Oval Shape: The oval cross-section provides a larger surface area compared to round tubes, which can

 be beneficial in applications like heat transfer or fluid flow.

Double Bore Design: The two parallel bores allow for the simultaneous passage of different materials,

gases, or fluids, making it ideal for applications requiring separation or controlled flow.

Dimensions: Customizable in terms of length, bore diameter, wall thickness, and oval dimensions to suit

 specific requirements.

Applications:

• Thermocouple Protection: Used as sheaths to protect thermocouples in high-temperature

environments.

• Insulators: Electrical insulation in high-voltage or high-temperature systems.

• Laboratory Equipment: Used in furnaces, kilns, and other high-temperature processing equipment.

• Semiconductor Industry: For wafer processing and handling in corrosive environments.

• Industrial Heating: As radiant tubes or heat exchangers in industrial furnaces.

• Medical Devices: In specialized equipment requiring biocompatibility and high-temperature

resistance.

Specification :

ceramic alumina tube , alumina content 95% - 99.7%,White or Ivory ,Wear-resisting and acidproof alkali

corrosion , High temperature (1600-1700 degree centigrade). Good chemical stability,high insulation,

strong adsorption capacity, is a nice electrical insulation and wear-resisting material.

Composition	AL95	AL99
AL2O3 Content	97%	99.80%
Color	White	Ivory
Tensile	30 Kpsi	32 Kpsi
Flexural	55 Kpsi	60 Kpsi
Compressive	300 Kpsi	330 Kpsi
Density	3.7 g/cc	3.92 g/cc
Hardness	13.8 HV, Gpa	18 HV, Gpa
Thermal Conductivity	25 W/(m K)	32 W/(m K)
C.O.T.E.	77 In / In°C (x10^7)	78 In / In°C (x10^7)
Working Temperature	1500 °C	1750 °C
Dielectric Constant	9.5	9.8
Volume Resistivity	>10^14 Ohm-cm	>10^15 Ohm-cm
Dielectric Strength	16 KV/mm	20 KV/mm

Advantages:

• High thermal shock resistance

• Low thermal conductivity

• Chemically inert

• Long service life in harsh environments

Customization:

These tubes can be tailored to meet specific requirements, such as:

• Different alumina purity levels

• Surface finishes (e.g., polished, glazed)

• Precision tolerances for bore size and ovality

If you need more details about specific properties, applications, or suppliers,

feel free to ask!
