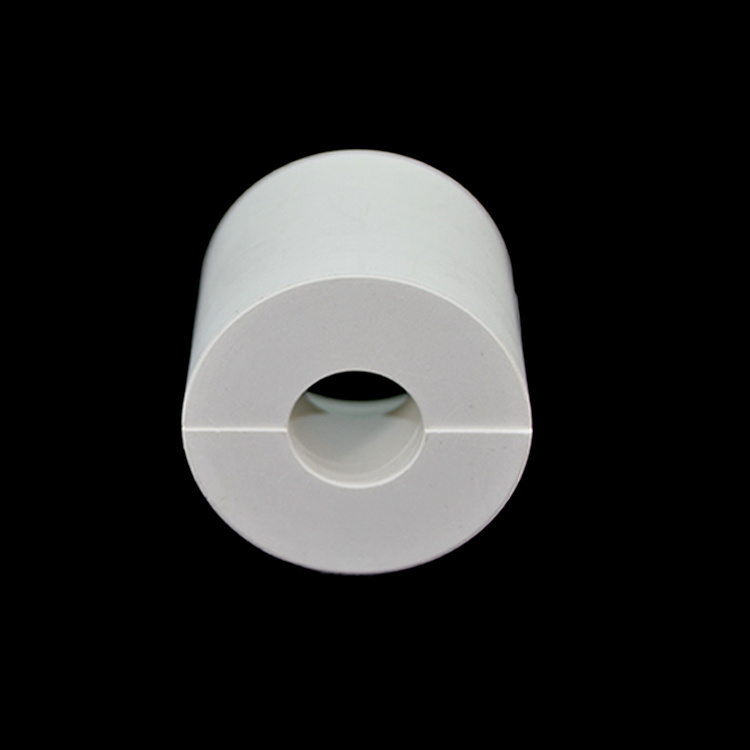

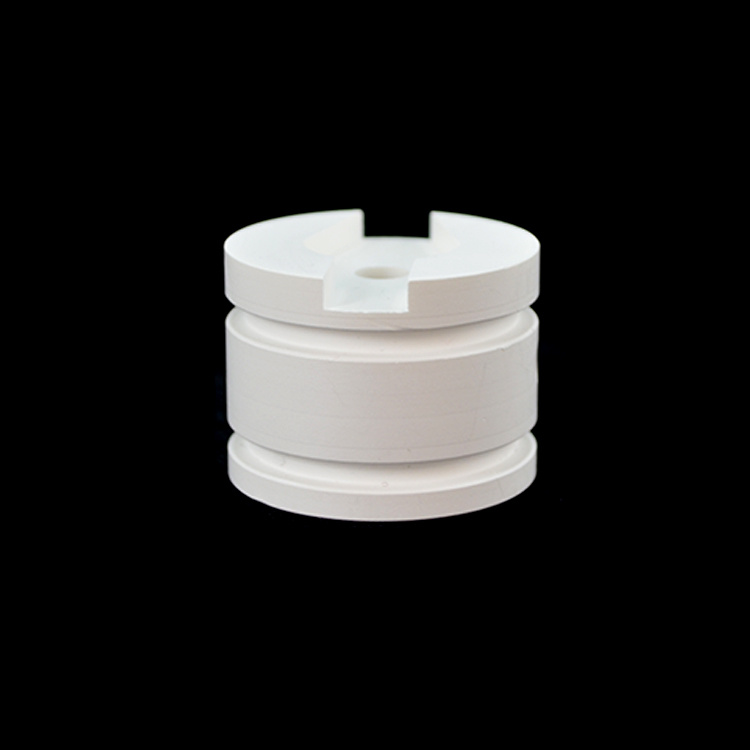

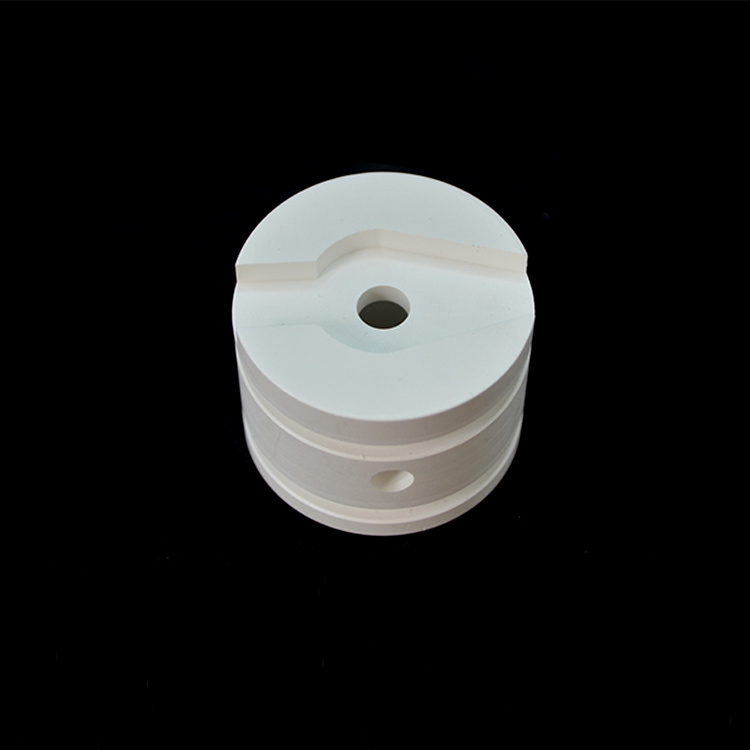

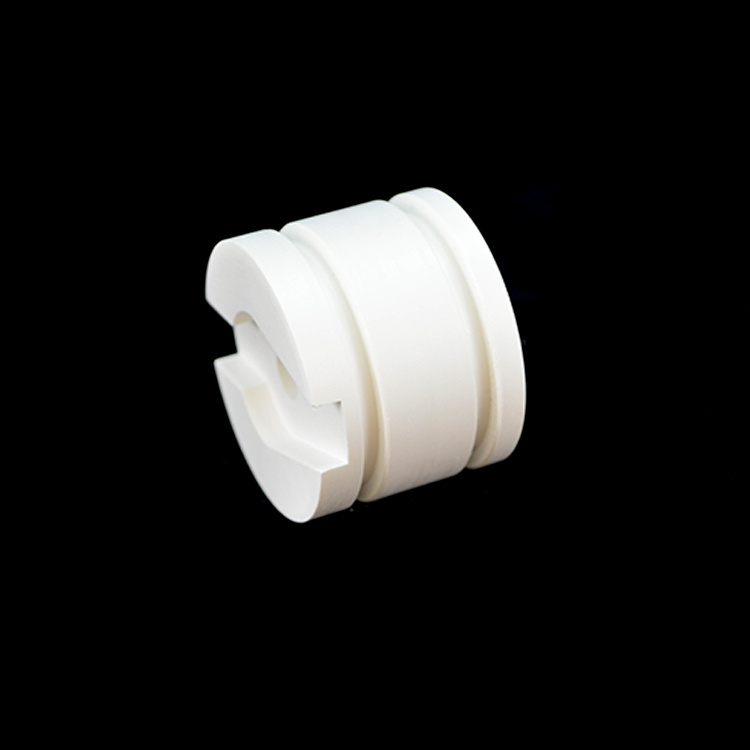

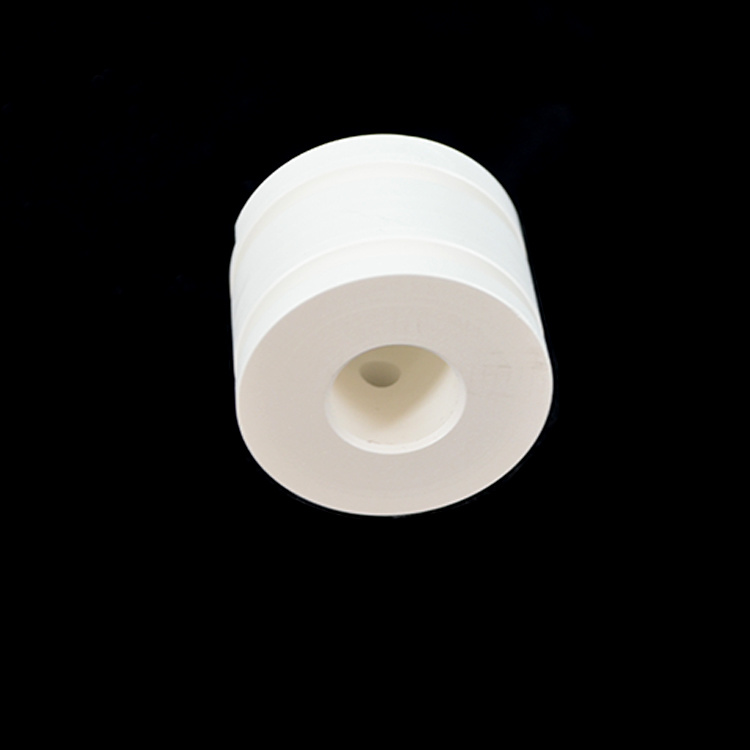

XTL sintyron bn boron nitride ceramic insulating parts

Boron nitride (BN) ceramic parts are components made from boron nitride, a synthetic ceramic material known for its unique combination of thermal, electrical, and mechanical properties. These parts are used in a wide range of high-performance applications, particularly in industries that require materials capable of withstanding extreme temperatures, corrosive environments, and high thermal stress.

Email: sintyron@xtlceramic.com

Inquiry Now

Products Center

Product Instruction
Hexagonal Boron Nitride has a microstructure similar to that of Graphite. In both materials this structure, made up of
layers of tiny platelets, is responsible for excellent machinability and low-friction properties. we called hexagonal boron
nitride (HBN) or white graphite.

Properties	Units	BAN
Main Composition	/	BN+ALN
Color	/	Greyish- Green
Density	g/cm3	2.8~2.9
Three-Point Bending Strength	MPa	90
Compressive Strength	MPa	220
Thermal Conductivity	W/m·k	85
Thermal Expansion Coefficient (20-1000℃)	10-6/K	2.8
Max Using Temperature	In Atmosphere ℃	900
	In Inactive Gas ℃	1750
	In High Vacuum ℃	1750

Product details

Processing of Boron Nitride Ceramics

Hot Pressed Sintering
Chemical Vapor Deposition

Applications of Boron Nitrides Ceramics

Thermal Management

Excellent electrical insulation and thermal conductivity make BN very useful as a heat sink in high-power electronic
applications. Its properties compare favorably with beryllium oxide, aluminum oxide, and other electronic packaging
materials, and are easier machinable to desired shapes and sizes.
High Temperature Environments

Temperature stability and excellent resistance to thermal shock make BN the ideal material in the toughest high-
temperature environments such as equipment for plasma arc welding, diffusion source wafers, and semiconductor
crystal growth equipment & processing.
Molten Metal Handling

BN is inorganic, inert, nonreactive with halide salts and reagents, and is not wet by most molten metals and slags.
These characteristics, combined with low thermal expansion, make it ideal for interface materials used in various
molten metal processes.
