XTL sintyron high temperature resistant 95% alumina ceramic tube-closed one end


An alumina ceramic tube closed at one end is a high-temperature, corrosion-resistant, and electrically insulating component used for protection, containment, and insulation in demanding industrial and laboratory applications.

Email: sintyron@xtlceramic.com

Inquiry Now

Products Center

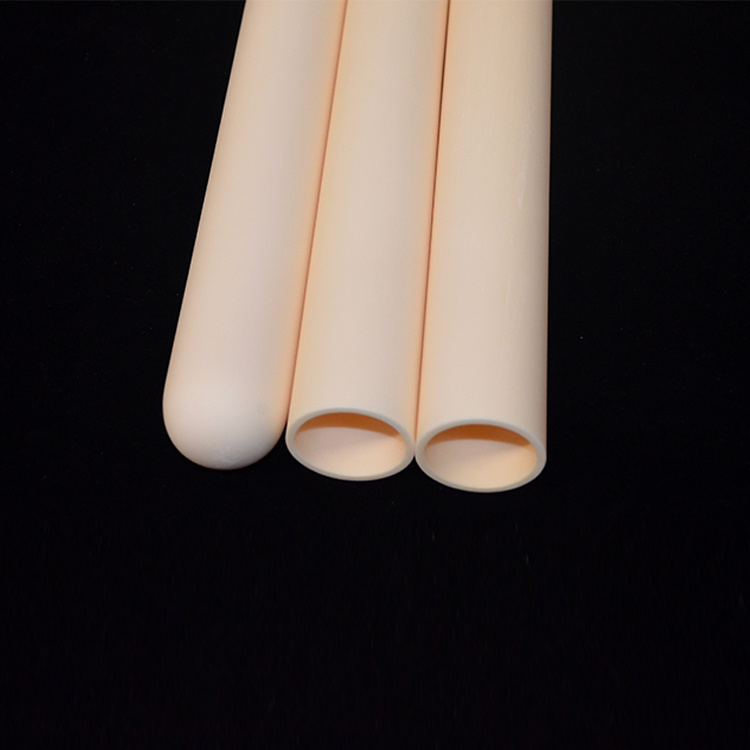

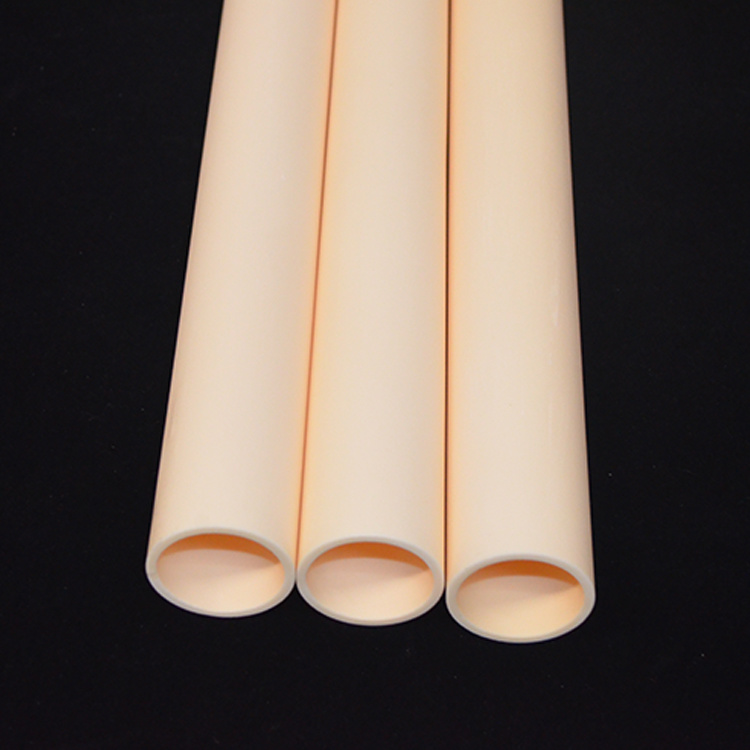

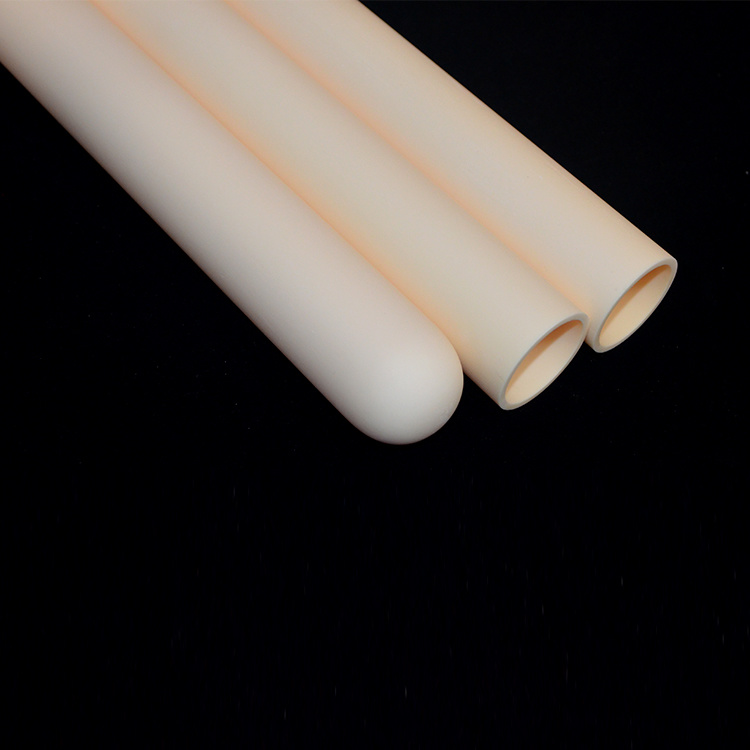

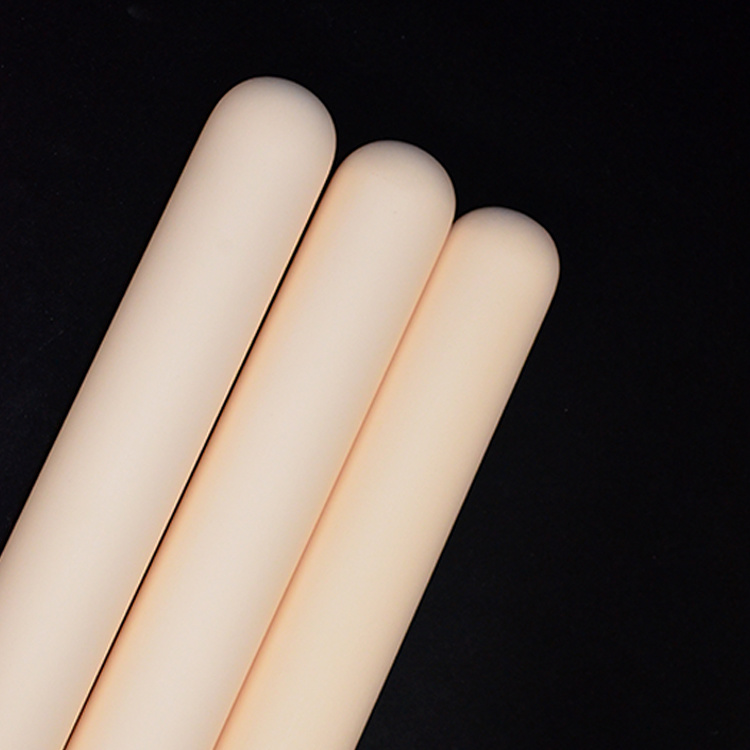

high temperature resistant 95% alumina ceramic tube-closed one end

An alumina ceramic tube closed at one end is a specialized component made from aluminum

oxide (Al₂O₃), known for its excellent thermal, electrical, and mechanical properties. These tubes

 are widely used in high-temperature, corrosive, or electrically insulating environments.

We can do OEM and OBM according to your drawing and requires​:​​​​​​

Product description:

















Technical Specifications:

Material: Aluminum Oxide (Al₂O₃)

Purity: 95%, 99.5%, or 99.8%

Density: ≥ 3.7 g/cm³

Hardness: ≥ 80 HRA

Maximum Operating Temperature: Up to 1700°C

Surface Finish: Smooth, polished, or as per request



Properties of Alumina Ceramic:

High Temperature Resistance: Can withstand temperatures up to 1700°C or higher.

Electrical Insulation: Excellent dielectric properties.

Chemical Resistance: Resistant to acids, alkalis, and other corrosive substances.

Mechanical Strength: High hardness and wear resistance.

Thermal Conductivity: Good thermal conductivity for a ceramic material.



Applications:

Thermocouple Protection: Used as sheaths for thermocouples in high-temperature environments.

Furnace Tubes: Ideal for use in kilns and furnaces due to their thermal stability.

Laboratory Equipment: Used in crucibles, reaction tubes, and other labware.

Insulators: Electrical and thermal insulation in industrial equipment.

Semiconductor Industry: Used in wafer processing and other high-purity applications.

Lamp Components: As arc tubes in high-intensity discharge lamps.



Specification :

ceramic alumina rods , alumina content 95% - 99.7%,White or Ivory ,Wear-resisting and acidproof alkali corrosion ,

 High temperature (1600-1700 degree centigrade). Good chemical stability,high insulation, strong adsorption capacity,

 is a nice electrical insulation and wear-resisting material.

CompositionAL95AL99
AL2O3 Content97%99.80%
ColorWhiteIvory
Tensile30 Kpsi32 Kpsi
Flexural55 Kpsi60 Kpsi
Compressive300 Kpsi330 Kpsi
Density3.7 g/cc3.92 g/cc
Hardness13.8 HV, Gpa18 HV, Gpa
Thermal Conductivity25 W/(m K)32 W/(m K)
C.O.T.E.77 In / In°C (x10^7)78 In / In°C (x10^7)
Working Temperature1500 °C1750 °C
Dielectric Constant9.59.8
Volume Resistivity>10^14 Ohm-cm>10^15 Ohm-cm
Dielectric Strength16 KV/mm20 KV/mm











































In Stock Thermal Analysis High Purity Alumina Ceramic Crucible
