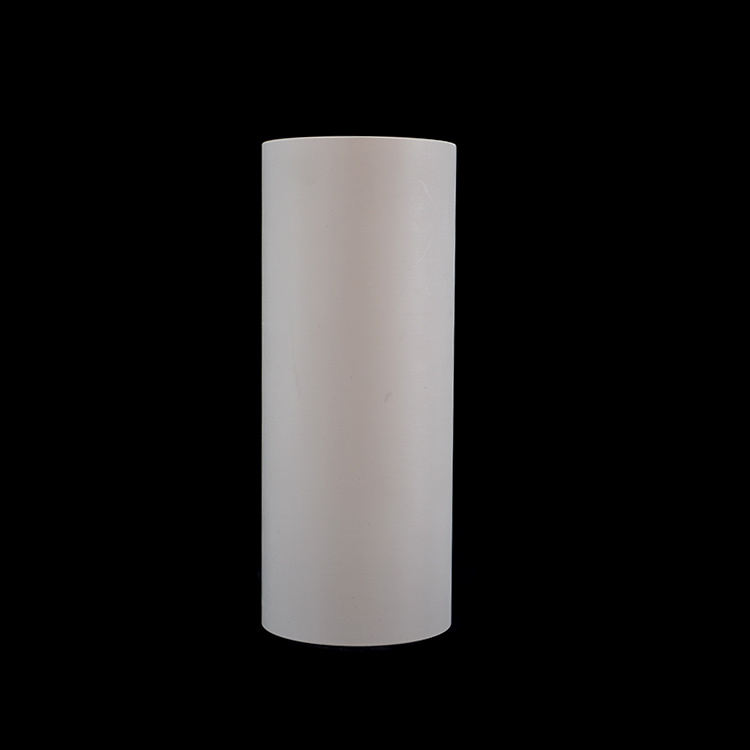

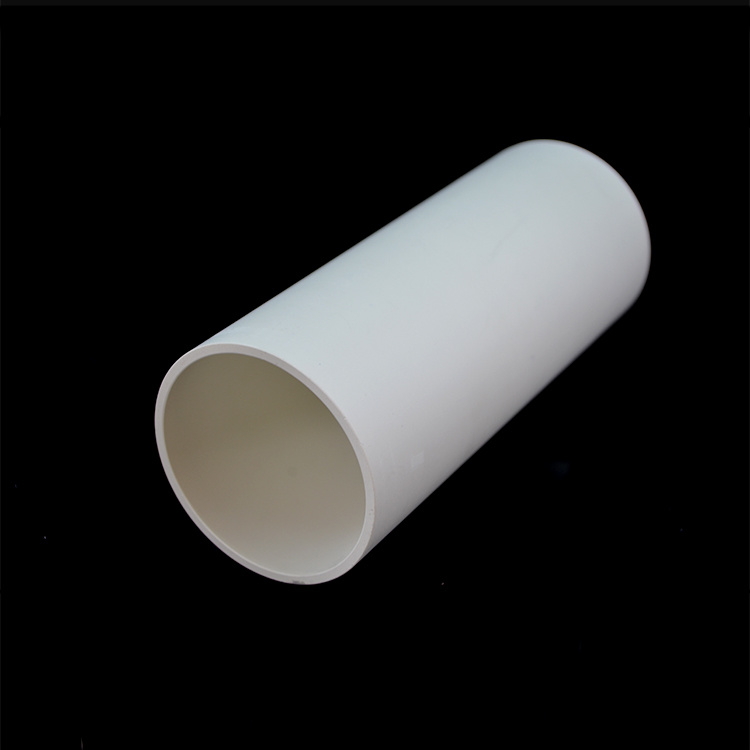

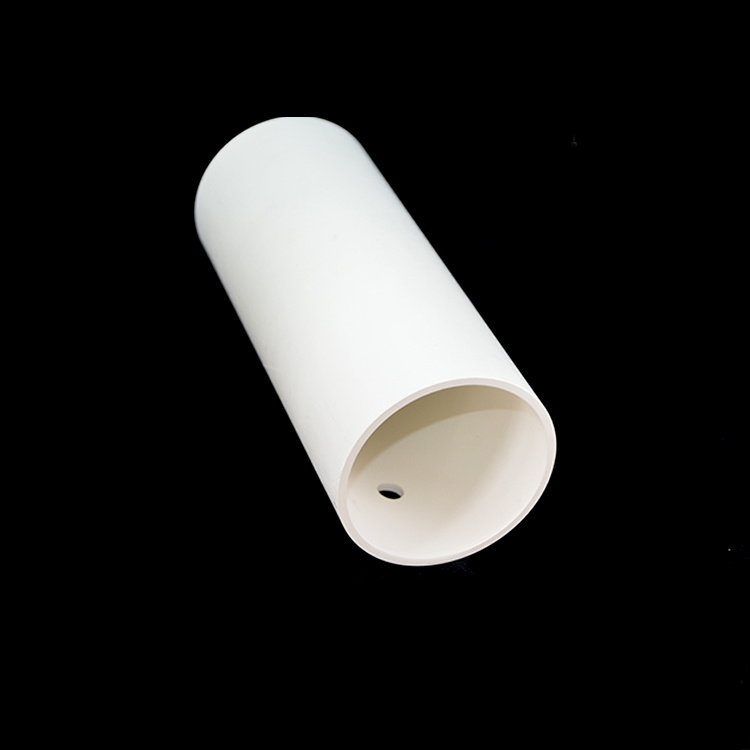

XTL sintyron 99% hexagona boron nitride ceramic tube

Product Instruction

Boron nitride crystal belongs to the hexagonal crystal system, similar in structure and graphite, and there are many similarities

in performance, so it is also called "white stone ink", which has good heat resistance, thermal stability, thermal conductivity,

high temperature dielectric strength, and is an ideal heat dissipation material and high temperature insulation material.

Boron nitride has good chemical stability and can resist the etching of most molten metals. It also has good self-lubricity.

Boron nitride products have low hardness and can be machined with an accuracy of 1/100mm.

Item		Unit	Index
Thermal Conductivity (RT)		W/m·k	40-50
Thermal expansivity(25-700)		10-6 °C	6.5-7.5
Resistivity (RT)		Ω·m	>1012
Puncture voltage		10-6 /kv·m	2.5-4.0
Mohs' hardnees		/	2
Dielectric constant (Σ)		/	3.8-4.3
Bending strength (RT)		mpa	>35
Compression strength (RT)		mpa	>200
Density		g/cm3	1.9-2.2
Chemical Composition	B+N	%	99.5
	Oxygen Content	%	<0.4
	Carbon Content	%	<0.02
Working Environment Temperature	Oxidizing Atmosphere	℃	850
	Vacuum	℃	1800
	Inertia	℃	2300

Product details

Properties of Boron Nitride Ceramic Tubes：

Thermal Conductivity:

1. High thermal conductivity, especially in hexagonal boron nitride (h-BN), making it ideal
   for heat dissipation and thermal management.
2. Maintains thermal stability at high temperatures.

Electrical Insulation:

1. Excellent electrical insulator, even at elevated temperatures.
2. Suitable for use in high-voltage and high-temperature electrical applications.

Chemical Resistance:

1. Highly resistant to most chemicals, including acids, alkalis, and molten metals.
2. Inert to reactive substances, making it ideal for corrosive environments.

Thermal Stability:

1. Can withstand extreme temperatures, often up to 1000°C in air and even higher in
   inert or vacuum environments.
2. Low thermal expansion coefficient, reducing the risk of cracking under thermal stress.

Mechanical Properties:

1. Hexagonal boron nitride (h-BN) is relatively soft and machinable, similar to graphite.
2. Cubic boron nitride (c-BN) is extremely hard and durable, though less commonly used for tubes.

Lubricity:

1. Hexagonal boron nitride has excellent lubricating properties, even at high temperatures, due to its layered structure.

Non-Wetting Properties：

1. Boron nitride does not wet with most molten metals, making it ideal for metal casting and handling applications.

Types of Boron Nitride Ceramic Tubes

Hexagonal Boron Nitride (h-BN) Tubes:

1. Soft, machinable, and lubricious.
2. Used in applications requiring thermal conductivity, electrical insulation, and lubrication.
3. Commonly used in hot-pressed form (HPBN) for improved density and strength.


Types of Boron Nitride Ceramic Tubes

1. Hexagonal Boron Nitride (h-BN) Tubes:

   • Soft, machinable, and lubricious.

   • Used in applications requiring thermal conductivity, electrical insulation, and lubrication.

   • Commonly used in hot-pressed form (HPBN) for improved density and strength.

2. Hot-Pressed Boron Nitride (HPBN) Tubes:

   • Made by hot-pressing hexagonal boron nitride powder.

   • Dense, strong, and suitable for high-temperature and high-stress applications.

3. Pyrolytic Boron Nitride (PBN) Tubes:

   • Produced by chemical vapor deposition (CVD).

   • High purity and excellent thermal and electrical properties.

   • Used in semiconductor and optical applications.

Applications of Boron Nitride Ceramic Tubes

1. Thermal Management:

   • Heat exchangers, thermocouple protection tubes, and insulating sleeves in high-temperature environments.

   • Used in furnaces, kilns, and thermal processing equipment.

2. Metal Casting and Molten Metal Handling:

   • Crucibles, nozzles, and tubes for handling molten metals (e.g., aluminum, steel, and copper).

   • Non-wetting properties prevent adhesion and contamination.

3. Semiconductor Manufacturing:

   • Diffusion tubes, insulators, and components in semiconductor production.

   • Provides a clean, non-reactive surface for high-purity processes.

4. Aerospace and Defense:

   • Components for high-temperature environments, such as rocket nozzles and thermal shields.

   • Lightweight and durable solutions for extreme conditions.

5. Electrical Insulation:

   • Insulating sleeves and tubes in high-voltage and high-temperature electrical systems.

   • Used in capacitors, transformers, and other electronic components.

6. Chemical Processing:

   • Tubes and liners for corrosive chemical environments.

   • Resistant to acids, alkalis, and other reactive substances.

7. Optical and Laser Applications:

   • Tubes and components for high-power lasers due to its transparency to infrared and microwave radiation.

   • Used in optical systems requiring high thermal stability.

Advantages of Boron Nitride Ceramic Tubes

• Lightweight compared to metals.

• Excellent thermal and electrical insulation.

• High resistance to thermal shock.

• Non-toxic and environmentally friendly.

• Superior performance in extreme environments.
