SINTYRON high pressure ceramic plunger pump zirconia ceramic

Alumina ceramic bases are indispensable for ensuring the safety, efficiency, and reliability of new energy charging infrastructure. Their superior electrical insulation, thermal management, and mechanical properties make them ideal for high-power applications. Ongoing innovations in material composites and manufacturing will further enhance their performance and adoption in the energy sector

Email: sintyron@xtlceramic.com

Inquiry Now

Products Center

Product description:
Zirconia Ceramic Pump Plunger is a critical component in high-performance positive displacement pumps, renowned for its
exceptional durability, chemical resistance, and reliability in demanding applications. It typically replaces traditional metal
plungers (e.g., stainless steel) to overcome limitations in harsh operating environments.

Zirconia Ceramic Pump Plunger Information:

Product	Zirconia Ceramic Pump Plunger
Material	Zirconia
Color	White/Nylon yellow
Shape	Arc/Square/Rectangle/Cylinder/Boat
Capacity	1-2000 ml
Density	6.04g/cm³
Melting Point	2020℃
Max. Working Temperature	1800 ℃or 3180 F

Performance parameters:

Test item		zirconia
index	unit	ZrO2
Principal component content	一	99.00%
Color	一	white
Gas permeability	一	airtight
density	g/cm3	6.1
hardness	Moh's hardness	8.5
Water Absorption	一	0
Bending strength (20°C)	Mpa	1200
Compressive Strength (20°C)	Mpa	5700
Coefficient of thermal expansion (25°C to 800° C)	10X6/° C	10
Insulation strength (5mm thickness)	AC-kv/mm	一
Dielectric loss 25°C lMHz	一	0.001
dielectric constant 25°C MHz	一	29
Volume resistivity (20°C) (300°C) (500 °C)	Ω.cm3	>1013
		5*103
		一
Long-term service temperature	℃	1600
Thermal conductivity (25° C)	W/m/K	3

Properties of Zirconia Ceramic Pump Plunger

1.Exceptional Hardness & Wear Resistance
2.High Mechanical Strength & Fracture Toughness
3.Outstanding Corrosion Resistance
4.Low Friction Coefficient
5.Non-Wetting & Ultra-Smooth Surface
6.Biocompatibility & Non-Toxicity

Applications of Zirconia Ceramic Pump Plunger:

Chemical Processing: Metering and transferring aggressive solvents, acids, alkalis, and corrosive slurries.
Pharmaceutical & Biotechnology: Precision dosing and transfer of active pharmaceutical ingredients (APIs), vaccines,
buffers, and sterile fluids. They can withstand repeated sterilization (SIP/CIP).
Water Treatment: Accurate injection of flocculants, disinfectants, and other treatment chemicals.
Food & Beverage: Handling concentrates, flavors, oils, and dairy products without risk of metallic contamination or product
adhesion.
Semiconductor Manufacturing: Pumping high-purity CMP slurries, photoresists, and etchants where even nanoscale metallic
particles can cause defects.
Energy & Battery Production: Electrolyte filling and handling in lithium-ion battery manufacturing.

Company Information:

FAQ:

Why us?
* Professional manufacturer since 1997.
* Strict quality control on production process and tolerance.
* Free samples available
* Customized production based on your drawing or specification
* On-time delivery and reliable support and service
* Inventory available for quick shipment
* We keep confidentiality of all the drawings and business information between us.
Are you a trading company or a manufacturer?
* We are a manufaturer.
Can you provide the free samples?
* Yes,we can offer free sample if we have it in stock,but the courier fee is to be collected.
Do you accept customized production based our specification?

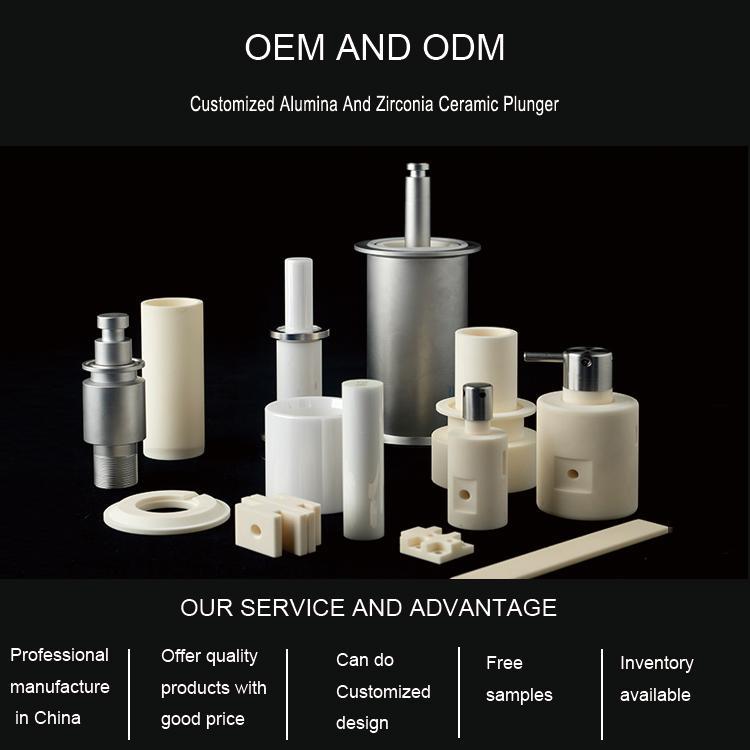

* Yes,we offer OEM and ODM service. Just send us your drawing if you have it. If you don’t have a drawing, just tell us your idea,
we will work out the drawing for you.

What's the delivery time?
* 7 working days for standard products 30 days for customized products.
What is the MOQ?
* No limit to the quantity. We can offer the best proposal and solutions according to your condition.
What is the payment terms you accept?
* T/T,LC,Western Union,moneygram are acceptable.
How to deal with the faulty?
* Firstly, Our product are produced in strict quality control system and the defective rate will be less than 2%.
If there are problems with the product, we will provide free replacement.
