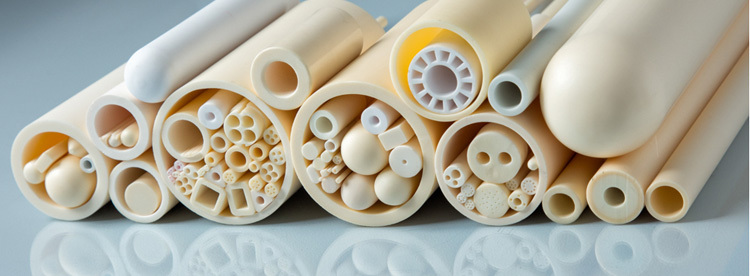

Wholesale High purity 95% 99% al2o3 alumina ceramic tube
Alumina ceramic tube, including a tube body, one end of the tube body has a sloped surface, which is suitable for installation at corners, and a sealing gasket is provided at the end of the tube body. The sloped alumina ceramic tube of the present invention can replace stainless steel tubes, and is cold and durable. Good thermal performance, suitable for corner installation, good sealing, long service life.
Contact usProducts Center
Wholesale High purity 95% 99% al2o3 alumina ceramic tube
We can do OEM and OBM according to your drawing and requires:
Product description:
Ordinary alumina ceramics are classified into 99 porcelain, 95 porcelain, 90 porcelain, 85 porcelain, etc. according to the content of Al2O3. Sometimes the content of Al2O3 is 80% or 75%, which is also classified into ordinary alumina ceramic series. Among them, 99 alumina ceramic materials are used to make high temperature crucibles, refractory furnace tubes and special wear-resistant materials, such as ceramic bearings, ceramic seals and water valve sheets; 95 alumina ceramics are mainly used as corrosion-resistant and wear-resistant parts; In addition, due to the incorporation of part of talc, the electrical properties and mechanical strength are improved, and it can be sealed with metals such as molybdenum, niobium and tantalum, and some are used as electric vacuum devices.
Specification :
ceramic alumina tube , alumina content 95% - 99.7%,White or Ivory ,Wear-resisting and acidproof alkali corrosion , High temperature (1600-1700 degree centigrade). Good chemical stability,high insulation, strong adsorption capacity, is a nice electrical insulation and wear-resisting material.
| Composition | AL95 | AL99 |
| AL2O3 Content | 97% | 99.80% |
| Color | White | Ivory |
| Tensile | 30 Kpsi | 32 Kpsi |
| Flexural | 55 Kpsi | 60 Kpsi |
| Compressive | 300 Kpsi | 330 Kpsi |
| Density | 3.7 g/cc | 3.92 g/cc |
| Hardness | 13.8 HV, Gpa | 18 HV, Gpa |
| Thermal Conductivity | 25 W/(m K) | 32 W/(m K) |
| C.O.T.E. | 77 In / In°C (x10^7) | 78 In / In°C (x10^7) |
| Working Temperature | 1500 °C | 1750 °C |
| Dielectric Constant | 9.5 | 9.8 |
| Volume Resistivity | >10^14 Ohm-cm | >10^15 Ohm-cm |
| Dielectric Strength | 16 KV/mm | 20 KV/mm |
Feature&Application:
High temperature resistance, corrosion resistance, wear resistance, insulation and other properties.
Widely used in lamps and lanterns, electronic appliances, blast nozzle, auto parts, wear-resistant parts of insulating material, etc
