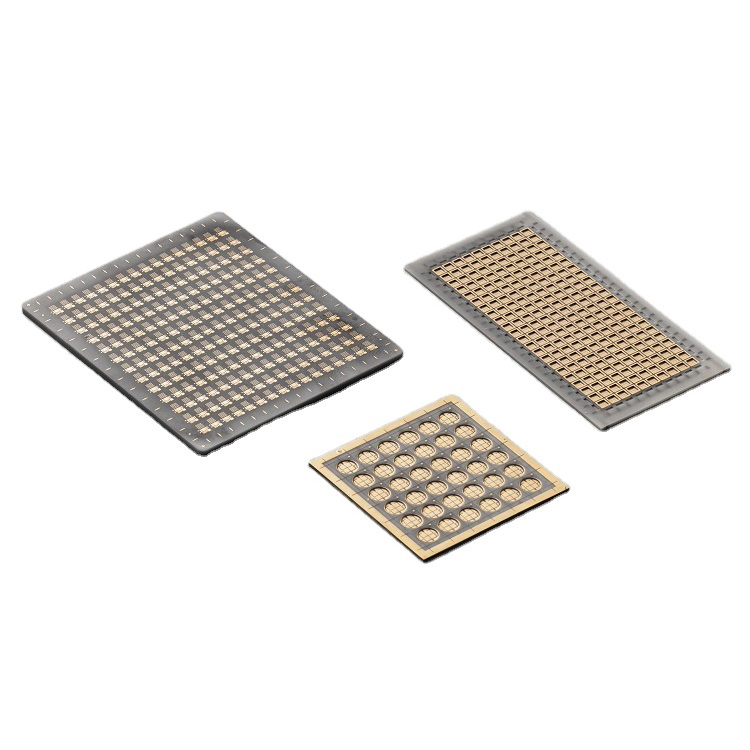

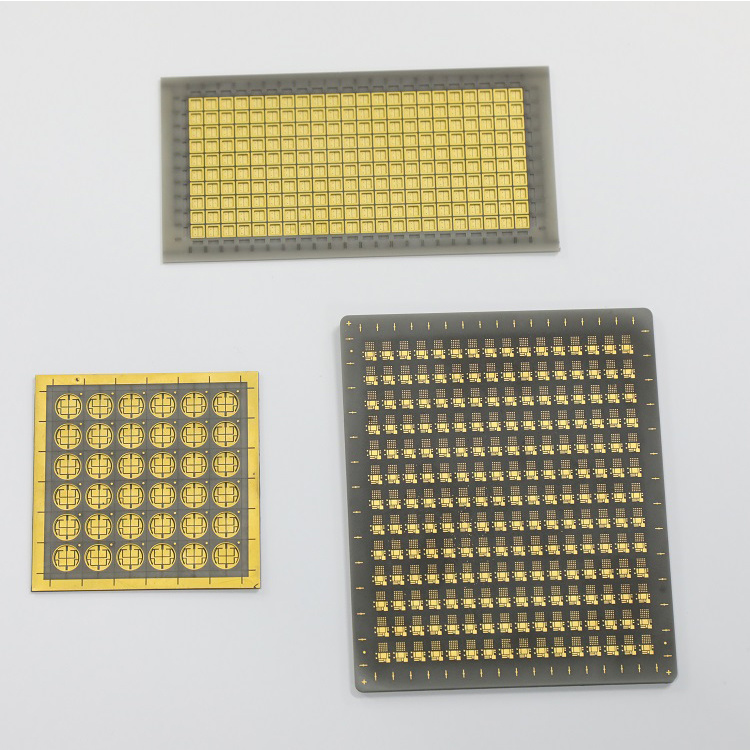

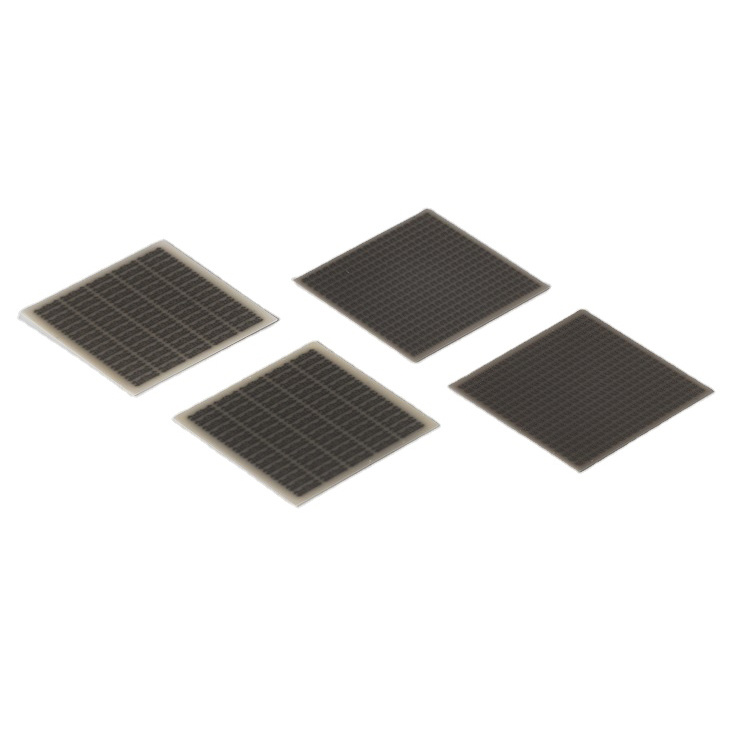

High Thermal Conductivity HTCC ALN Aluminum Nitride Ceramic Substrate

Product descritption:

Aluminum nitride ceramics have excellent electrical and thermal properties and are considered as the most promising ceramic substrates with high thermal conductivity. For the sealing of the package structure, the installation of components and the connection of input and output terminals, the surface and interior of the aluminum nitride ceramic substrate need to be metallized. The reliability and performance of ceramic surface metallization have an important impact on the application of ceramic substrate, and solid bonding strength and excellent air tightness are the most basic requirements. Taking into account the heat dissipation of the substrate, it is also required to have a high thermal conductivity at the metal and ceramic interface. Aluminum nitride ceramic surface metallization methods include: thin film method, thick film method, high melting point metallization method, electroless plating method, direct copper coating method (DBC) and so on.

Performance For Industrial Ceramic

Aluminum Nitride Substrate feature：

1.The thermal conductivity of aluminum nitride ceramic substrate is very high, 5 times that of alumina ceramic substrate, the crystal is AIN, strong hardness, good insulation, high temperature resistance and corrosion resistance.

2.The thermal conductivity (thermal conductivity) of aluminum nitride ceramic substrate is greater than or equal to 170W/m.k., and the thermal conductivity of aluminum nitride ceramic substrate is that of alumina ceramic substrate and silicon nitride ceramic substrate.

3.Aluminum nitride ceramic substrate without FR4 plate can be very long and large, the size is relatively small, the maximum size of the general aluminum nitride ceramic substrate material is 110mm*140mm, aluminum nitride ceramic substrate is a ceramic base, easy to break, do too big too long does not meet the characteristics of the substrate.

4.Aluminum nitride ceramic substrate dielectric loss is very low, in 0.0002, coupled with the coefficient of thermal expansion is also very low (4.6~5.2), dielectric loss is small, energy consumption is small, high temperature corrosion resistance, durable.

5.The dielectric constant of aluminum nitride ceramic substrate is generally 9.0, which is 0... 8, low dielectric constant, means better quality.

6.Flexural strength refers to the ability of a material to resist bending without breaking, which is mainly used to investigate the strength of brittle materials such as ceramics. The bending strength of the aluminum nitride ceramic substrate is 450Mpa, and the bending strength of the alumina ceramic substrate is 400Mpa, which means that the aluminum nitride ceramic substrate can withstand more pressure and tension.

7.The ability of a material to resist other hard objects pressing into it and causing dented deformation. Commonly used hardness units are Brinell hardness (HB or BHN), Vickers hardness (Hv or VHN), Rockwell hardness (HRA, HRC or RHN) and Knower hardness (HK or KHN). The surface hardness of a material is the result of its strength, proportional limit, toughness, ductility, abrasion resistance, cutting resistance and other properties. The fracture toughness of aluminum nitride ceramic substrate is 3.0Mpa m1/2.

8.Aluminum nitride ceramic substrate is brittle, although the hardness is stronger than the alumina ceramic substrate, the alumina ceramic substrate is white, and the aluminum nitride ceramic substrate is grayish white. The surface roughness of aluminum nitride ceramic substrate is generally required to be less than 10 N.

Aluminum Nitride Substrate Advantages:
• Very high thermal conductivity (> 180 W/mK)
• Low thermal expansion 4 to 6×10^-6K^-1 (between 20 and 1000°C) similar to Si, GaN,
and GaAs semiconductors
• High dielectric strength

Aluminum Nitride Substrate Application:

It is mainly used in the field of high frequency wireless communication, aerospace, memory, drivers, filters, sensors and automotive electronics.
