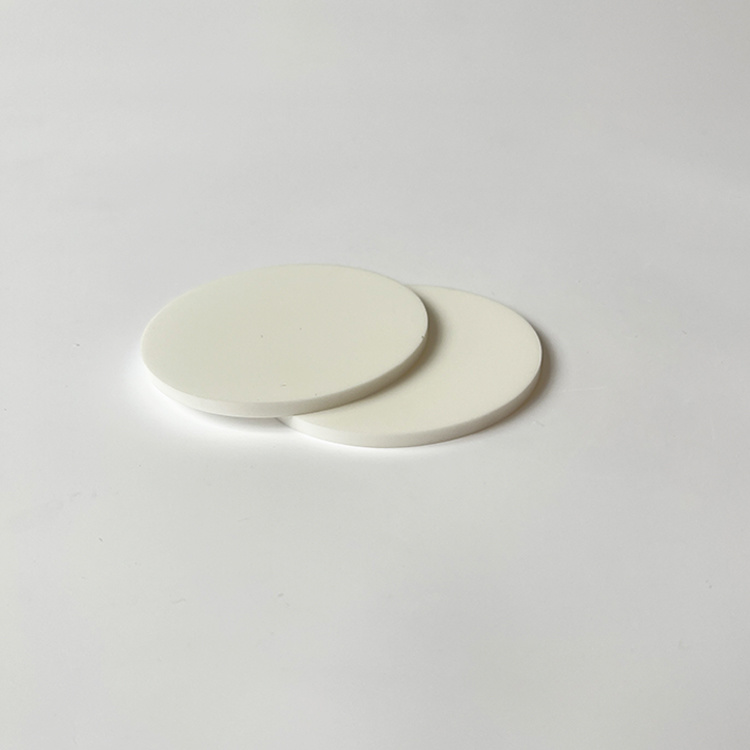

XTL sintyron beryllium oxide beo ceramic round substrate

Beryllium oxide ceramics ceramics have extremely high thermal conductivity, second only to silver and copper, an order of magnitude higher than the widely used alumina ceramics, similar to pure aluminum, superior to various iron alloys, is the highest thermal conductivity of all ceramic materials. At present, the thermal conductivity of beryllium oxide ceramics produced in China is generally above 200W/m·K, and can reach 280W/m·K at present. Beryllium oxide ceramics Ceramics also have a high resistivity and a large breakdown strength, while low high-frequency losses, and low dielectric constant. In addition, the mechanical strength is also very high, with good thermal shock resistance and chemical stability. Due to its excellent performance in thermal, electrical, nuclear and mechanical aspects, beryllium oxide ceramics ceramics can be used as bracket parts and assemblies in the aerospace field, neutron moderators and radiation protection materials in atomic reactors in the nuclear industry, high performance, high power microwave packages and broadband high power electric vacuum devices, and crucible for melting rare and precious metals. For example, uranium and plutonium can also be used as refractory materials for refractory support rods for heating elements, etc., which have excellent applications in various fields.

Products Center

Beryllium oxide ceramic substrates, also known as BeO substrates, are widely used in various electronic and thermal management applications due to their excellent thermal conductivity and electrical insulation properties. These substrates are typically manufactured using a high-temperature sintering process.

Beryllium oxide ceramic substrates are composed of high-purity beryllium oxide powder, which is mixed with a binder and then molded into the desired shape. The molded substrates are then subjected to a sintering process at temperatures above 1,200 degrees Celsius, where the binder is burned off and the beryllium oxide particles fuse together, forming a dense and uniform ceramic structure.

The resulting beryllium oxide ceramic substrates have a smooth surface and high dimensional stability. They exhibit excellent thermal conductivity, enabling efficient heat dissipation in electronic devices. Additionally, these substrates possess excellent electrical insulation properties, allowing for the reliable isolation of electrical components.

Due to their unique combination of properties, beryllium oxide ceramic substrates find applications in various industries, including power electronics, aerospace, telecommunications, and high-power LED lighting. They are commonly used as heat spreaders, substrates for high-power devices, and insulating layers in electronic assemblies.

In conclusion, beryllium oxide ceramic substrates offer exceptional thermal conductivity and electrical insulation properties, making them an ideal choice for numerous electronic and thermal management applications.

XTL sintyron high quality metallized beryllium oxide/beo ceramic discs

_01

Specifications

Blood glucose meters for diabetics
Gas lasers for DNA and tissue analysis
Confocal and wide field florescence microscopy equipment
Portable defibrillators
Telecom Infrastructure

Product Description

Beryllium oxide (BeO) ceramic materials are in high demand due to their superior performance at high temperatures along with a thermal conductivity second only to diamond among insulating materials.We offer solutions to any component that must provide high thermal conductivity in conjunction with electrical resistivity. Building on our unique combination of materials forming, firing and fabrication technologies, we are rapidly expanding our product portfolio to provide the next generation of beryllia ceramic materials.BeO Ceramic Materials are ideal in thermal management applications when the following design considerations are critical:

The physical size of the device or the enclosure is reduced.
The device is exposed to high ambient temperatures
Airflow or liquid cooling is not practical or prohibitively expensive
Ideal materials for heat sinks in electronic circuits
Ideal crucible material for melting and sintering operations providing superior performance at very high temperatures.

Typical Beryllium Oxide Ceramics Applications

Medical:

Blood glucose meters for diabetics
Gas lasers for DNA and tissue analysis
Confocal and wide field florescence microscopy equipment
Portable defibrillators
Telecom Infrastructure
Transistors and terminations in wireless system

Lasers

High end laser diodes for commercial systems
Industrial laser metal cutting and marking equipment
Long range fiber optic transmission

Semiconductor handling equipment

End-effectors and arm components
Wafer chucks
Crucibles for high temperature melting

Energy

Oil and gas exploration
In situ X-ray analysis for down-hole drilling
Concentrating photovoltaic (CPV) systems
Optoelectronics
Transmitters, receivers, modulators and switches
Power amplifiers and drivers

Military and Aerospace

Radar modules
Guidance modules
Microwave and millimeter-wave communications modules

Wireless Communications

Point-to-point and point-to-multi point radios
Satellite communication modules

BeO Ceramic Properties

Property	Condition	Unit	Value
Density		g/cm 3	≥2.85
BeO purity		%	≥99
Tensile strength		MPa	≥140
linear expansion coeff.	20℃-500℃	×10 -4 /℃	7-8.5
Thermal Conductivity	40℃	W/m·k	≥250
Specific Heat	25℃	cal/°C gm	0.25
Hardness	60	Rockwell
Dialectic Constant	1MHz 20℃		6.5-7.5
	10GHz 20℃		6.5-7.5
	1MHz 20℃	×10 -4	≤4
	10GHz 20℃	×10 -4	≤8
Resistivity	100℃	Ω.cm	≥1013
	300℃	Ω.cm	≥1010
Dialectic Strength	DC	KV/mm	≥15
Chemical stability	1:9HCl	ug/cm 2	≤0.3
	10% NaOH	ug/cm 2	≤0.2
Max. working Temperature		℃	1800

Available in a variety of Thicknesses

2.062" square

2.25" square

2.9" x 2.3"

3.7" square

4.5" square

_04

_06

FAQ

Why us?
* Professional manufacturer since 1997.
* Strict quality control on production process and tolerance.
* Free samples available
* Customized production based on your drawing or specification
* On-time delivery and reliable support and service
* Inventory available for quick shipment
* We keep confidentiality of all the drawings and business information between us.
Are you a trading company or a manufacturer?
* We are a manufaturer.
Can you provide the free samples?
* Yes,we can offer free sample if we have it in stock,but the courier fee is to be collected.
Do you accept customized production based our specification?
* Yes,we offer OEM and ODM service. Just send us your drawing if you have it. If you don’t have a drawing, just tell us your idea, we will work out the drawing for you.

What's the delivery time?
* 7 working days for standard products 30 days for customized products.
What is the MOQ?
* No limit to the quantity. We can offer the best proposal and solutions according to your condition.
What is the payment terms you accept?
* T/T,LC,Western Union,moneygram are acceptable.
How to deal with the faulty?
* Firstly, Our product are produced in strict quality control system and the defective rate will be less than 2%.
If there are problems with the product, we will provide free replacement.
